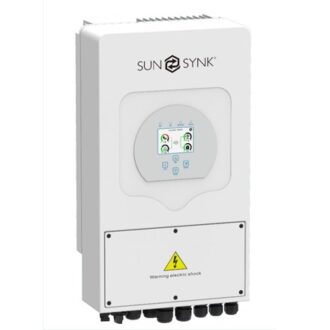

Sunsynk 5kw Hybrid Inverter

(0 customer reviews)

R17,963.00

FREE Delivery in Gauteng
Please contacts us for deliveries outside Gauteng
Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 20.5
Size (mm): 580 X 330 X 208mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years

Add to cart

Buy Now

Category: Inverters Sunsyn

Description

The Sunsynk Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.

The Inverter has many uses and is recommended for the following applications:

• Marine (vessel power management)

• Power shedding (home / office / factory)

• UPS (fuel saving systems)

• Remote locations with solar and wind generators

• Building sites

• Military locations

• Telecommunication sites

FEATURES

• 220V single phase, pure sine wave inverter

• Self consumption & feed-in to the grid

• Auto re-start while AC is recovering

• Programmable supply priority for battery or grid

• Programmable multiple operation modes; on-grid / off-grid & UPS

• Configurable battery charging – current / voltage based on applications by LCD setting

• Configurable AC / solar / generator charger priority by LCD setting

• Compatible with mains voltage or generator power

• Overload / over-temperature / short-circuit protection

• Smart battery charger designer optimised battery protection

• Limit-function installed to prevent excess power overflow to grid

• Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers

• Smart settable 3-stage MPPT charging for optimised battery performance

• Time of use function

• Smart load function

Inputs:
- PV solar
- AC grid power
- Batteries
- Generator
Output voltage – 230V AC
Continuous power – 5000W
Start-up power – 10000W
Backup power – 5000W
DC – 48V
Battery charger – 125A
Transfer time <= 10ms
Battery charger adjustable for battery bank size and type
- Can charge Lead Acid and Li-ion batteries
- Li-ion battery charging self-adapts to BMS
Solar Input
- Max power input –6000W
- Max V DC input – 500V DC
- Max current input – 11A + 11A
- MPPTs – 2
Multi-core processor design and advanced MPPT control
High reliability and response speed
Multiple operating modes:
- Battery only
- Grid-tie only
- Hybrid
- Off-grid
Additional features
- AC couple
- 6 stages time of use settings
- IP65
Protections
- PV input lightning protection
- Anti-islanding
- Insulation resistance detection
- Residual current
- Output short circuit
- Output overvoltage
- Arc detection
Certifications
- NRS 097-2-1:2017, Edition 2
- Grid Regulation: UL1741, IEEE1547, VDE-ARN4105
- Safety Regulation: IEC62109-1&2, IEC62040-1
- EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
